—— SHOOTING TOOL ——
—— SHOOTING TOOL ——
Video Introduction
Video Introduction
Shooting Tool for Construction video introduction

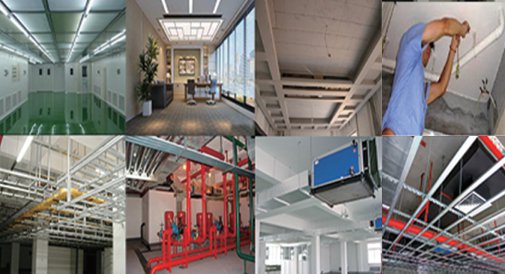

Application:
The shooting tools with nails can be used in these area:
● Office ceiling
● Workshop Ceiling
● Wooden home ceiling decoration
● Project light gage steel joist ceiling
● Fire-fighting pipe installation
● Exhaust pipe installation
● Pipeline, tube installation
● Crane span structure installation
● Distribution box installation
Assembly Shooting nails for Shooting tool
Ceiling Nail
Pipe Clip Nail
Square Nail
Fire Nail
|
Model |
Materials |
Size |
|
Shooting Tool for Construction |
Stainless Steel, Rubber |
|
|
Ceiling Nail |
Steel, Nitrocellulose & Double Base Propellant |
Screw Hole: M6/M8/M10 |
|
Pipe Clip Nail |
Steel,Nitrocellulose & Double Base Propellant |
Pipe diameter: 16/20/25/32/40mm |
|
Square Nail |
Steel,Nitrocellulose & Double Base Propellant |
φ32 |
|

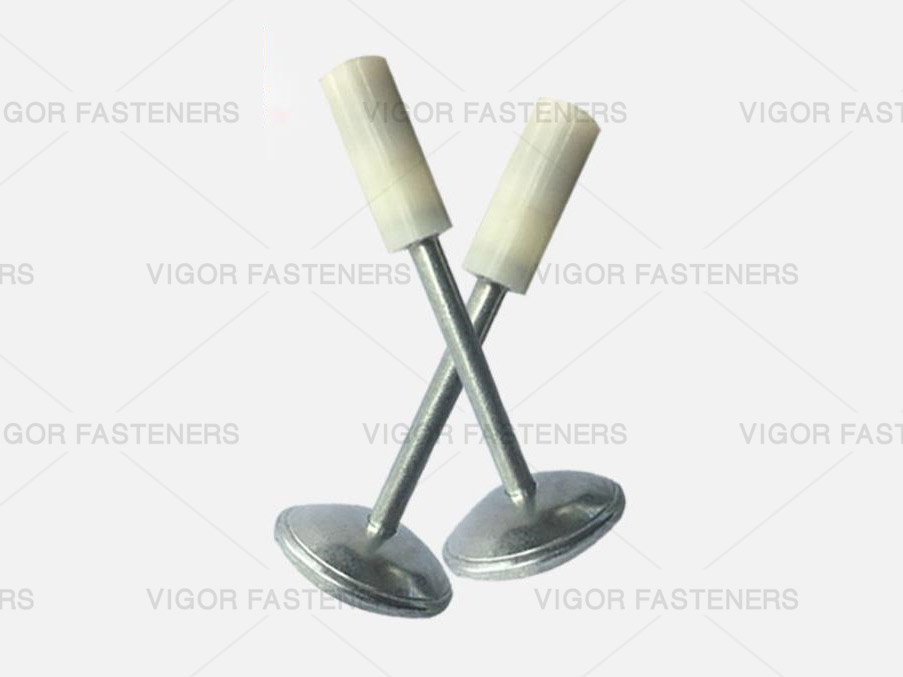

Fire Nail |
Steel,Nitrocellulose & Double Base Propellant |
φ32 |

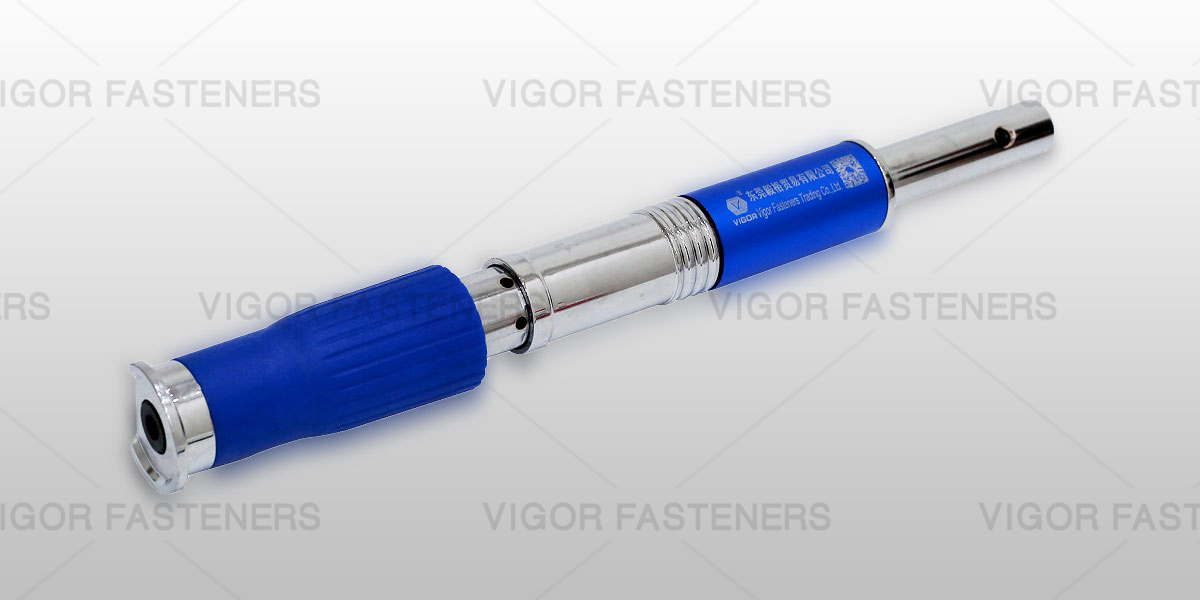

Shooting tool information
|
Parameter Name |
Data |
|
Weight |
2.2kg |
|
Tool length |
400mm |
|
Equipped nail length |
20-52mm |
|
Compression stroke |
Max for 68mm |
|
Use compressive force of equipped nail |
100N |
|
Safe hitting nail frequency |
20 pieces/hour |
|
Concrete substrate (without pebbles) |
C25/C30/C40/C45/C50 |
|
Steel structure object penetration thickness (low carbon steel) |
10mm/8mm/6mm |
Application:
The shooting tools with nails can be used in these area:
● Office ceiling
● Workshop Ceiling
● Wooden home ceiling decoration
● Project light gage steel joist ceiling
● Fire-fighting pipe installation
● Exhaust pipe installation
● Pipeline, tube installation
● Crane span structure installation
● Distribution box installation

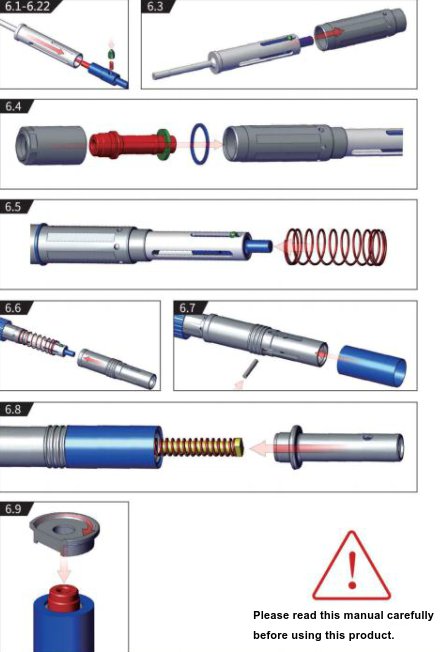

Shooting tool Installation instruction
Features:
1. Easy and convenient for celling installation without ladder
2. Take 10 seconds to install
3. Replace most of expansion anchor bolts & screws
4. Can be punched in high grade concrete and steel panel
5. Do not need Electrical power
6. Dust free, low noise
7. Strong Fasten, load capacity can reach to 300-500kgs after installation.

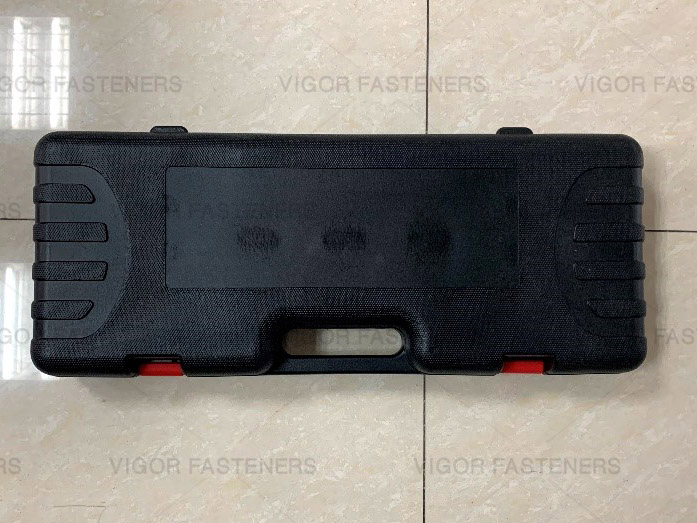

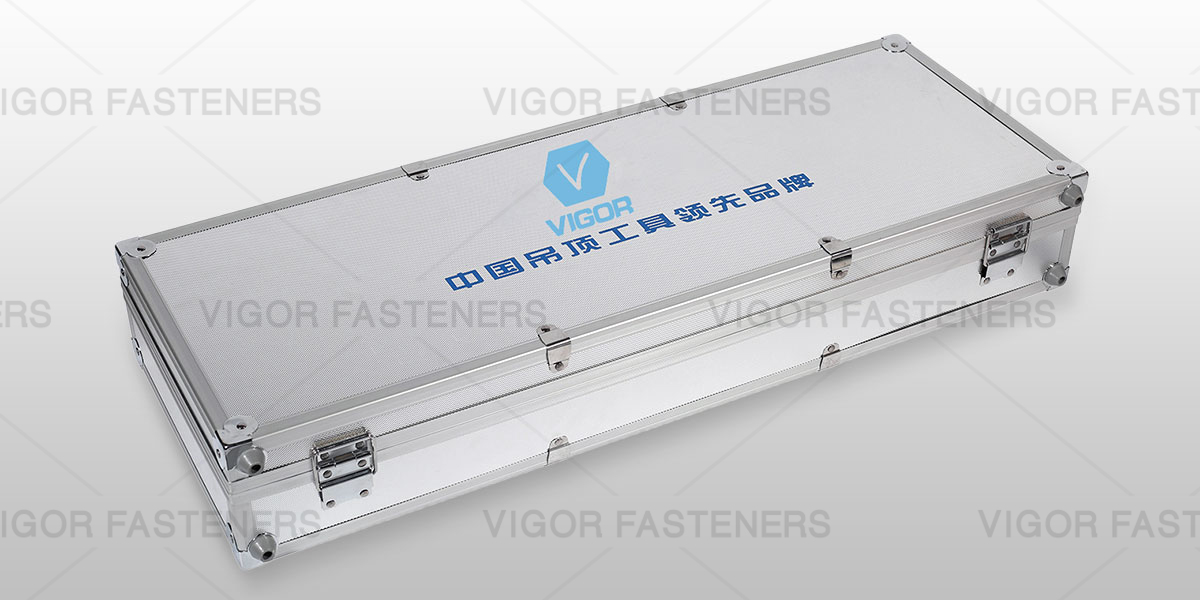

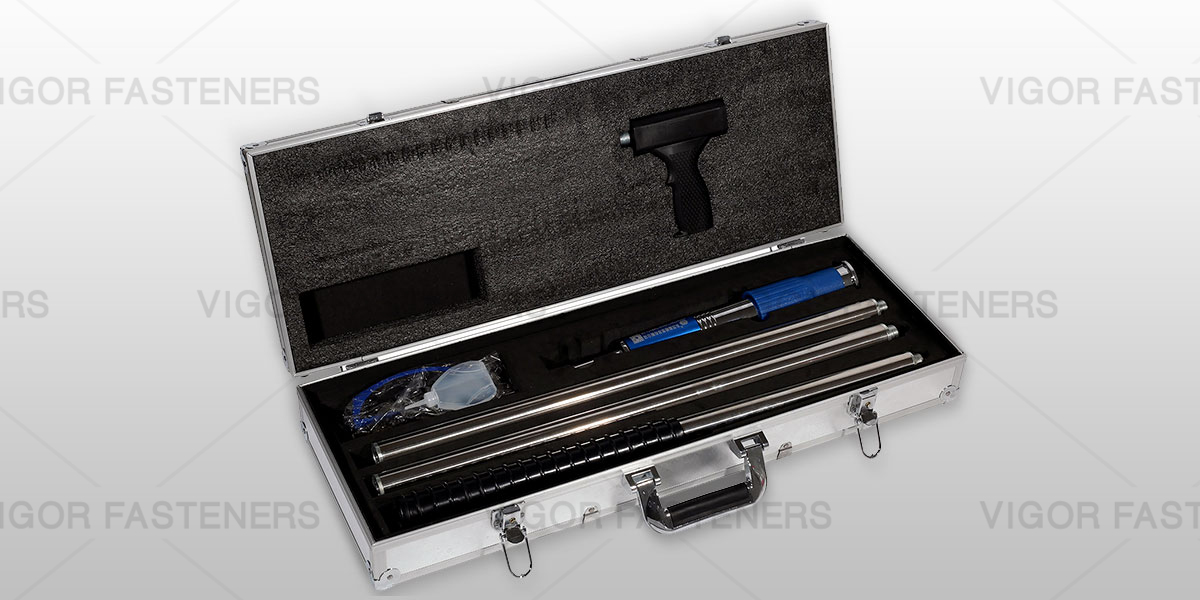

Packages

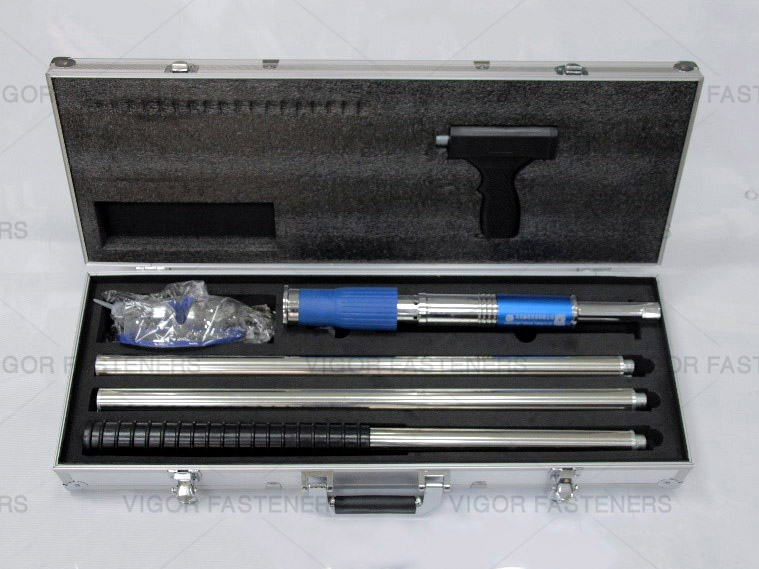

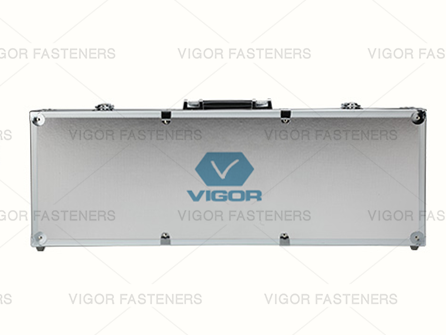

Standard Packages

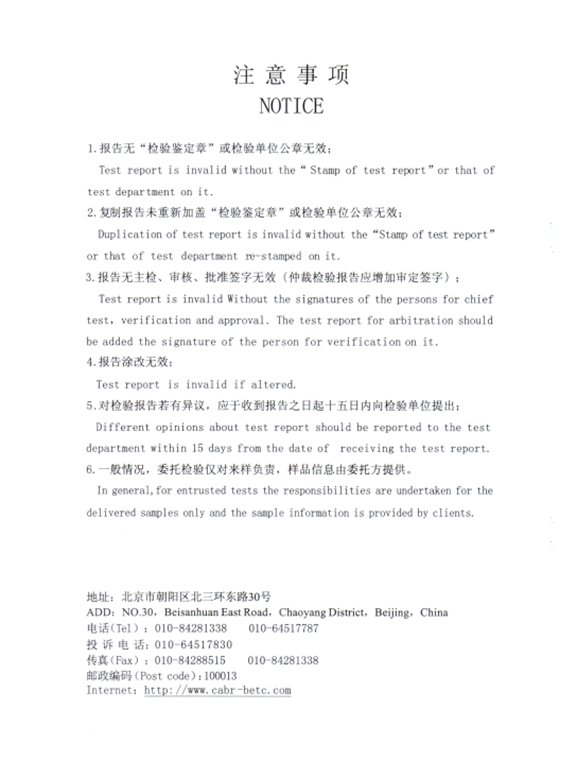

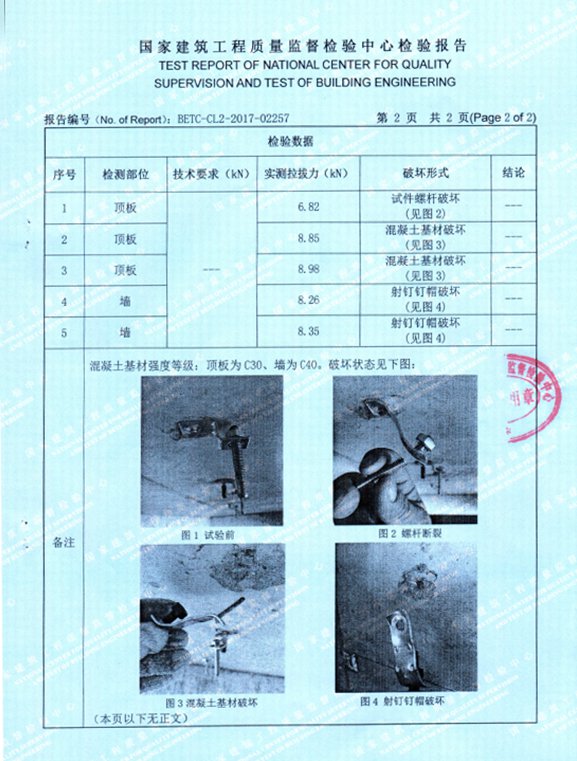

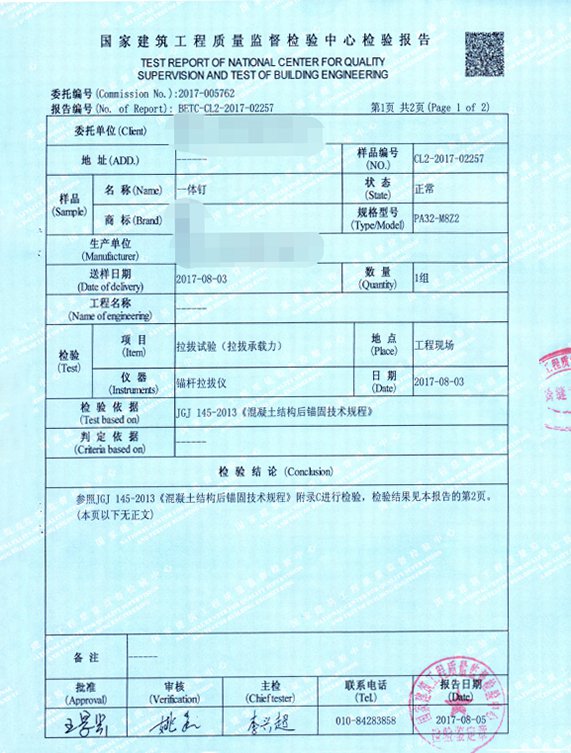

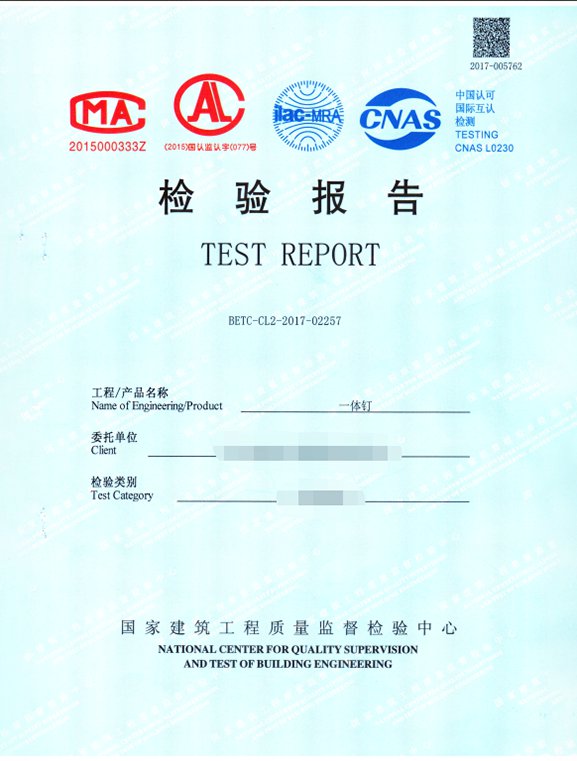

Test Report
The product is fully approved by the National Center for Quality Supervision and Test of Building Engineering. Here is the test report
